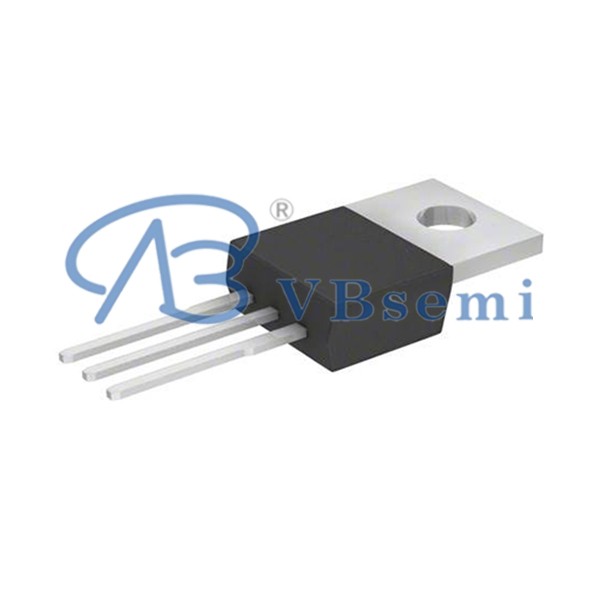

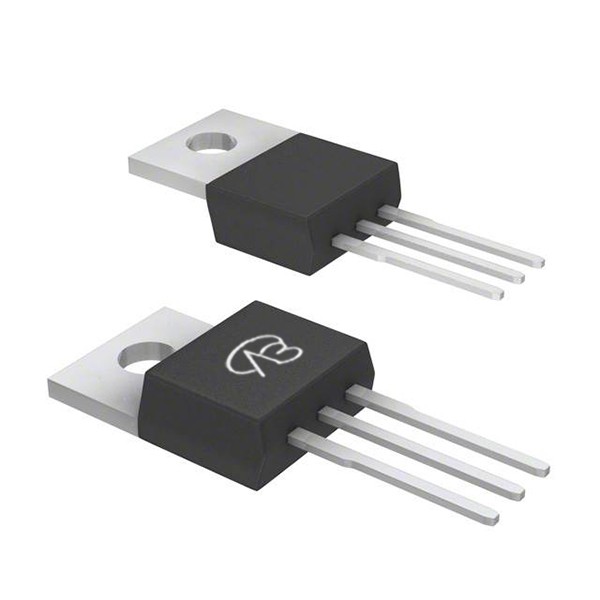

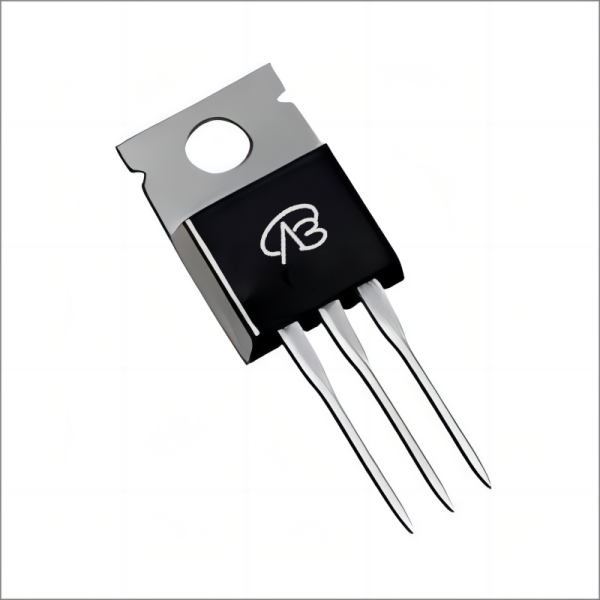

IRL3103PBF-VB is a high-performance single-channel N-type MOSFET in TO220 package. This MOSFET has a maximum drain-source voltage (VDS) of 30V and a gate voltage (VGS) range of ±20V. IRL3103PBF-VB uses advanced trench technology to provide low on-resistance (RDS(ON)), which is 10mΩ at VGS = 4.5V and 7mΩ at VGS = 10V. Its maximum drain current (ID) can reach 70A. These features make IRL3103PBF-VB excel in applications that require high efficiency and high current handling, and is ideal for power switching and control tasks.
